EasyIO FW-14 WiFi Controller

Product Overview

The FW series supports BACnet IP client/server, BACnet MSTP client/server, Modbus TCP/RTU M/S as well as Sox, TCOM, P2P, and MQTT. The FW series also features HTML5- ready dashboards and can be programmed live via CPT.

The FW-14 includes 8 UI, 4 AO (Voltage) and 2 DO. For floating control, add the optional FR-02 module. Input point capacity can be expanded with the EasyIO-FD-20i. Licenses and annual maintenance are included in the one-time cost of the controller.

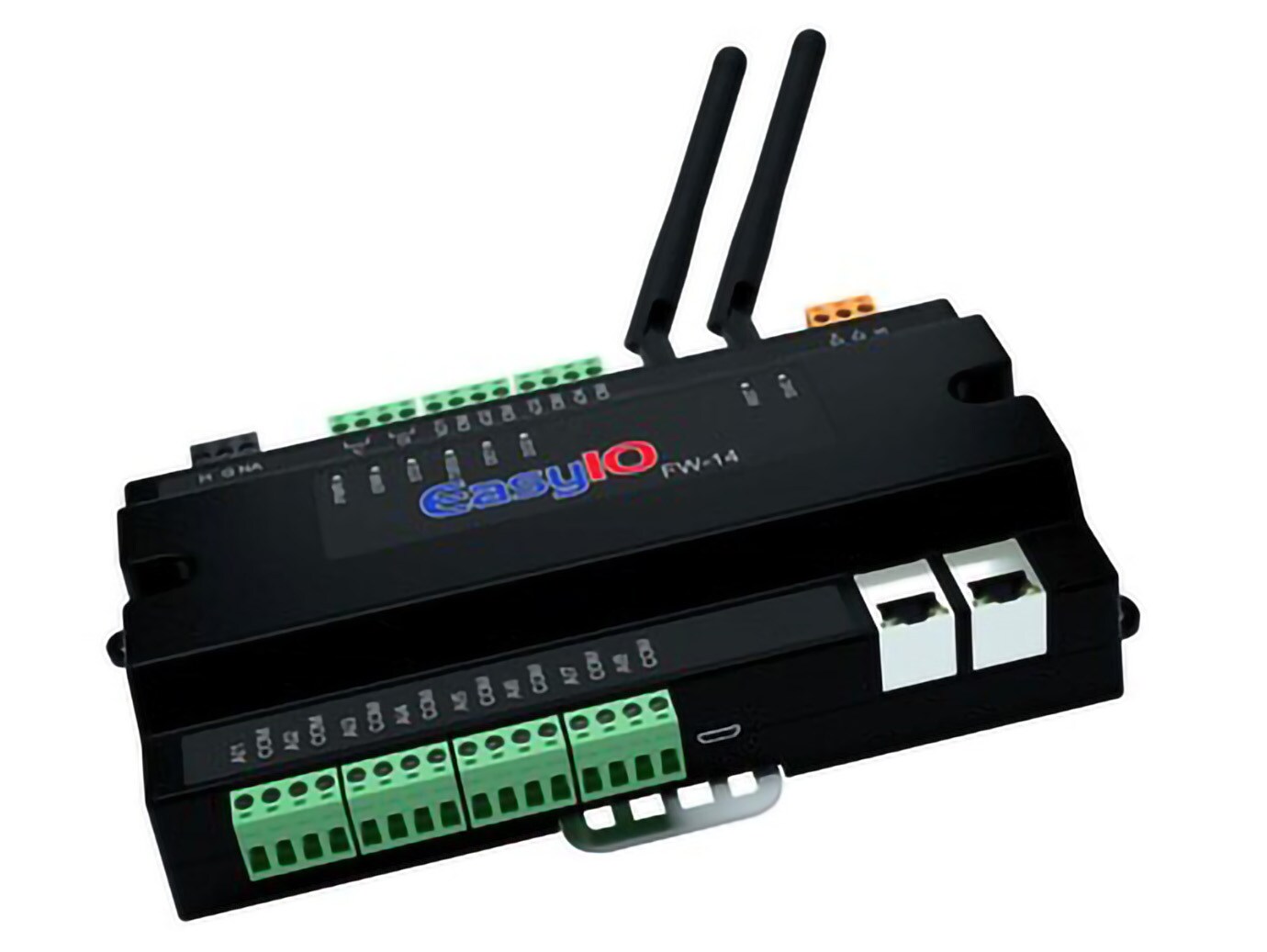

An Industrial electronic device labeled EasyIO, featuring multiple connection ports and two antennas

Features and Characteristics

BACnet, Modbus, TCOM and Sox protocol	580 MHz MIPS main processor
BACnet MSTP Client and BACnet IP Client up to 5 devices	48 Mhz ARM Cortex-M0 processor for the I/O
BACnet IP Server over WiFi or Ethernet	128MB RAM
BACNet MS/TP server	32MB Flash Memory
Modbus TCP and RTU Master up to 5 devices	2 x 10/100 Ethernet Port
EasyIO Peer to Peer Protocol, compatible with FS, FG+, FW and FT Series	1 x RS485
Built in web server, HTML5 compatible and SSL certificate support	Real Time Clock
MQTT, RESTful API and other web services	SuperCap Apps Safety Backup
Built in dashboard	24V AC/DC Power
WiFi Access Point, Repeater or Client Mode	Remote Flash Upgrades
2 Ethernet ports act as a normal network switch and support Ethernet daisy chains up to 9 units or up to 30 units when using Spanning Tree Protocol and connected in a ring	Optional Remote Antenna (single or double, with magnetic base)
Network Time Protocol (NTPv4) Client	8x UI
SMTP protocol (outgoing email) with SSL authentication	2x DO (with LED indicator)
SQL Lite up to 6,000 records	4x AO

Access here your Technical Documentation

FW-14 Specifications

Explore the specifications.

View

Technical Files

Unlock the technical files.

View
